Terminal Material

The terminals are made from half hard CZ108 Brass



Coating materials: 1-2 microns Nickel (Ni) & 4-6 microns Tin (Sn) 'brightplating'



All terminals are lead free



Solderability: To BS 2011



Methods of terminal retention:

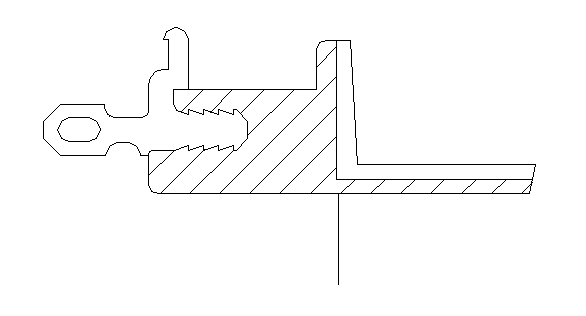

The metric terminals have a barbed effect which when inserted into the bobbin ensures a firm fitting. The imperial terminals are inserted and bent over at 90° which prevent them from 'pull out



Bobbins can be terminated to any configuration as specified by the customer
